SR 1 / SR 1 Turbo
Precise cutting quality with outstanding smooth cut surfaces make this entry-level model unique for semiautomatic cutting.
Description
Excellent cuts, varied fields of application, high hourly capacity and hygiene properties which makes cleaning in less then five minutes possible.
These are capacity-parameters, which could only be obtained by new machine-concept, that helps to make working and operating easier.
...and more:
- Serrated knives
- Angled shaft
- Lateral pre-compacting
- Stabilisers for sliced goods

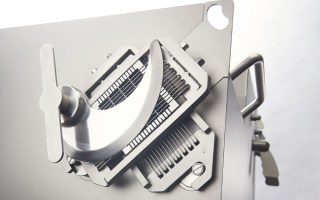

- Tool magazine
- Rollengelagerte Multiplexgatter
- Pressure-sensitive pre-compacting
- Stepless feed adjustment 1-32
- Mechanical pressure system
- Single-foot undercarriage
SR 1
Technical specifications
| Machine height | 980 mm |
| Machine length | 900 mm |
| Machine width | 600 mm |
| Machine weight | 280 kg |
| Connected load | 400 V, 2,1 kW, 16 A |
| Performance | max. 900 kg |
| Height of shaft | 100 mm |
| Length of shaft | 350 mm |
| Width of shaft | 100 mm |
| Section length | 1 - 32 mm |
| Sections | 80 pro/min |
| Cutting temperature | -5°C - +80°C |
| Standard grid sizes | 5, 10, 20, 50 / 6, 12, 24, 50 / 8, 16, 33, 50 |
SR 1 Turbo
Technical specifications
| Machine height | 980 mm |
| Machine length | 900 mm |
| Machine width | 600 mm |
| Machine weight | 280 kg |
| Connected load | 400 V, 2,1 kW, 16 A |
| Performance | max. 1.500 kg |
| Height of shaft | 100 mm |
| Length of shaft | 350 mm |
| Width of shaft | 100 mm |
| Section length | 1 - 32 mm |
| Sections | 160 pro/min |
| Cutting temperature | -5°C - +80°C |
| Standard grid sizes | 5, 10, 20, 50 / 6, 12, 24, 50 / 8, 16, 33, 50 |
