AS-38

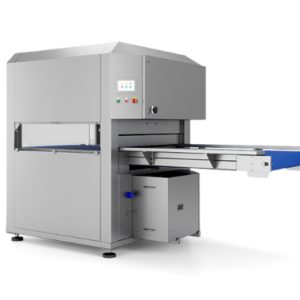

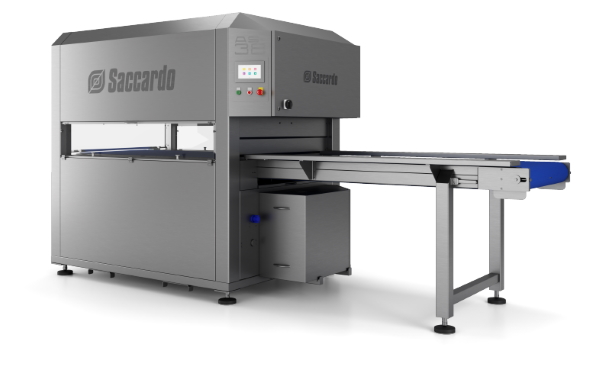

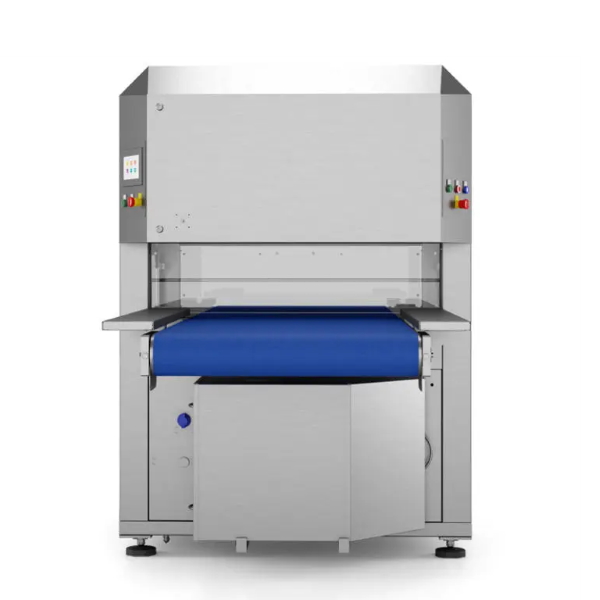

The chamber belt vacuum packing machine AS 38 is the largest and most efficient model in the range.
AS-38 Product Details
AS 38 represents an automatic solution for the vacuum packaging of fresh meat, processed meat, cheese, cold cuts and fish, using whichever type of heat-sealable bag.
The adopted structure, the movements and the pneumatic system allow an optimization of cycle times, ensuring a high hourly production with the safety of a stable and optimal presentation of the packages. Thanks to the versatility of configuration, the AS 38 belt type vacuum packing machine is adaptable to the various working and productive requirements of the user customer. Combined with thermoshrink and drying systems, chamber belt vacuum packing machines can constitute an automatic line of packaging.
Easy and fast maintenance: Main components are easily reachable and removable mostly without using any tool
Smart Control: Control panel easy and intuitive with “help” pages for an instant diagnosis
Limited human error: Applied know-how to grant an optimal packaging result, despite the possible human error
Green: Use of components, that monitor and limit the consumption, granting an optimal performance
|
Technical Features |
AS 38 (1000) | AS 38 (1500) |
| Nr. of sealing bars | 2 parallels | 2 parallels |
| Sealing bars lenght | 2 × 1000 | 2 × 1500 |
| Usefull distance between the bars | 860 | 800 |
| Lid height | 160, 220, 260, 300 mm | 160, 220, 260, 300 mm |
| External dimensions | 3031 × 1500 × 2024(h) mm | 4067 × 1500 × 2036(h) mm |
| Weight | 1900 Kg ca. | 2200 Kg ca. |
| Recommended vacuum pump (external) | 2×300 m3/h | 1×630 m3/h o 2×300 m3/h |
| Internal roots pump | 1000 m3/h | 1500 m3/h o 1000 m3/h |
General Features AS 38
Simple and solid construction for an easier cleaning and maintenance Sealing with top seal wire and bottom contrast FDA certified conveyor belt with adjustable speed Drilling bag system Mechanical scrap cutting and scrap automatic aspiration system Machine’s functioning and control by PLC, with various storable programs Multilingual touch screen panel, easy and intuitive Photocell for products presence Internet connection (WI-FI) for remote control and tele diagnosis
Optional AS 38
Bi-active and thermoregulated sealing specific for aluminium bags or packaging previously created by flowpack machines Separate conveyor belt for work of a single operator or in combination with automatic loading systems Anti-rolling slat conveyor belt specific for round products Soft Vacuum packaging device
