DUBLINO
DUBLINO range includes many models with different sizes and capacities that make them suitable for automatic vacuum packaging, using any type of heat-sealing bag, of fresh meat, processed meat, cheese, cold cuts and fish for medium production amount.
DUBLINO Product Details

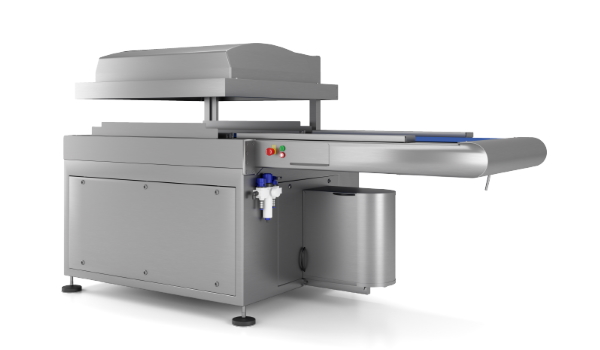

Thanks to the compactness of the structure and the optional available, the Dublino chamber belt vacuum packing machines are adaptable to the various working and productive requirements of the user customer. Combined with thermoshrinking and drying systems, Dublino chamber belt vacuum packing machines can constitute an automatic line of packaging.
General Features Dublino
Simple and solid construction for an easier cleaning and maintenance Sealing with top seal wire and bottom contrast FDA certified conveyor belt, with adjustable speed Machine’s functioning and control by PLC, with various storable programs Multilingual panel touch screen, easy and intuitive Photocell for products presence Internet connection (WI-FI) for remote control and tele diagnosis
Optional Dublino
Mechanical scrap cutting Scrap automatic aspiration system (only Dublino Special) Drilling bag system (only Dublino Special) Bi-active and thermoregulated welding specific for aluminium bags or packaging previously created by flowpack machines Anti-rolling slat conveyor belt specific for round products
|
Technical Features |
96 | 860 | 1396 | 800 |
| Nr. of sealing bars | 2 parallels | 2 parallels | 2 parallels | 2 parallels |
| Sealing bars length | 2 × 1000 mm | 2 × 1000 mm |
2 × 1300 mm |
2 × 1000 mm |
| Usefull distance between bars | 600 mm | 860 mm | 600 mm | 670 mm |
| Lid height | 260 mm | 160, 260, 360 mm |
160, 220, 260 mm |
|
| Overall dimensions |
2705 × 1100 × 1600(h) mm |
2705 × 1350 × 1600(h) mm | 3460 × 1100 × 1600(h) mm | 2705 × 1350 × 1600(h) mm |
| Weight | 800 Kg ca. | 900 Kg ca. | 1000 Kg ca. | 900 Kg ca. |
| Recommended vacuum pump (external) |
1×300 m3/h o 2×300 m3/h |
1×300 m3/h o 2×300 m3/h |
1×300 m3/h o 2×300 m3/h |
1×300 m3/h o 2×300 m3/h |
| Roots pump | – | 1000 m3/h | 1000 m3/h | 1000 m3/h |
