Henkovac Mobile
High quality floor-standing machines. 'First choice' for butcher shops, restaurants, hotel kitchens, hospitals, caterers and the food processing industry.
Description
- High-quality Busch vacuum pump
- Deep-drawn vacuumchamber
- Maintenance friendly construction
- Cable free welding bar construction
- Standard 10 Program Digital Time Control
- Optional: Starter kit with consumables (teflon tape, welding wire)
STAINLESS STEEL CHAMBER / TRANSPARENT COVER

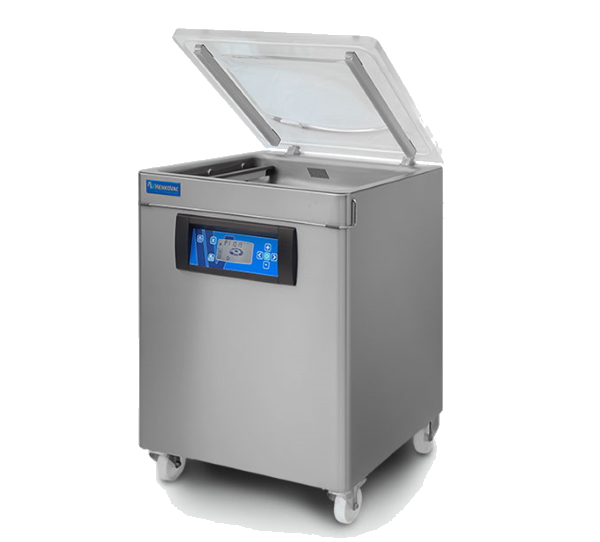

Mobile M1 |
Mobile M2 |
Mobile M3 |
||
| Chamber dimensions: 630 x 665 x 1020 mm |
Chamber dimensions: 710 x 780 x 1040 mm |
Chamber dimensions: 990 x 560 x 950 mm |
||
| Seal length: 420 mm |
Seal length: 500 mm |
Seal length: 840mm and 880mm |
||
| Vacuum pump: 21 m³/h |
Vacuum pump: 40 m³/h |
Vacuum pump: 21 m³/h |
||
| Weight: 110 kg |
Weight: 137 kg |
Weight: 125 kg |
||
| Power supply: 220V, 1Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 1Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 1Ph – 60Hz (Special voltages on request) |
STAINLESS STEEL COVER / FLAT WORKING SURFACE
Mobile M4 |
Mobile M5 |
Mobile M6 |
||
| Chamber dimensions: 740 x 760 x 1130 mm |
Chamber dimensions: 940 x 870 x 1140 mm |
Chamber dimensions: 1180 x 860 x 1140 mm |
||
| Seal length: 620mm or 545mm |
Seal length: 745mm – 805mm – 820mm |
Seal length: 945mm – 1005mm – 1020mm |
||
| Vacuum pump: 40 m³/h |
Vacuum pump: 63 m³/h |
Vacuum pump: 100 m³/h |
||
| Weight: 192 kg |
Weight: 308 kg |
Weight: 360 kg |
||
| Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
ALUMINUM COVER / CHAMBER
Mobile M7 |
Mobile M8 |
|||
| Chamber dimensions: 700 x 680 x 1040 mm |
Chamber dimensions: 910 x 830 x 1060 mm |
|||
| Seal length: 500mm |
Seal length: 690mm – 770mm – 795mm |
|||
| Vacuum pump: 40 m³/h |
Vacuum pump: 63 m³/h |
|||
| Weight: 160 kg |
Weight: 228 kg |
|||
| Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
