Description
- High-quality Busch vacuum pump
- Deep-drawn vacuumchamber
- Maintenance friendly construction
- Cable free welding bar construction
- Optional: Starter kit with consumables (teflon tape, welding wire)
- Standard 10 Program Digital Time Control
- Trenn (pre-cut) / 1-2 / Bi-Active seal
STAINLESS STEEL COVER / FLAT WORKING SURFACE

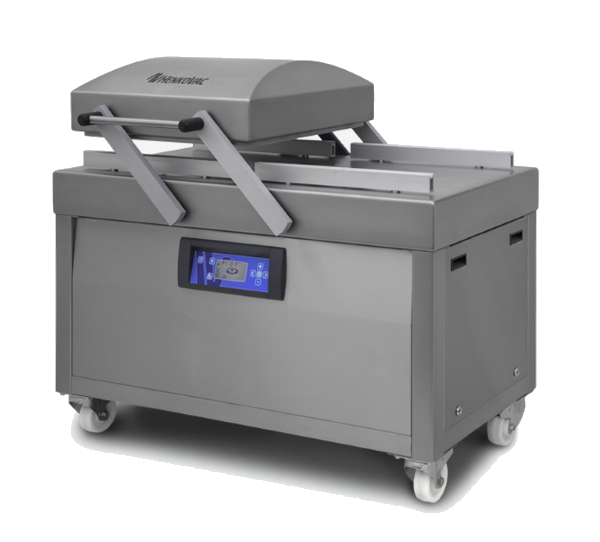

Double Chamber D1 |

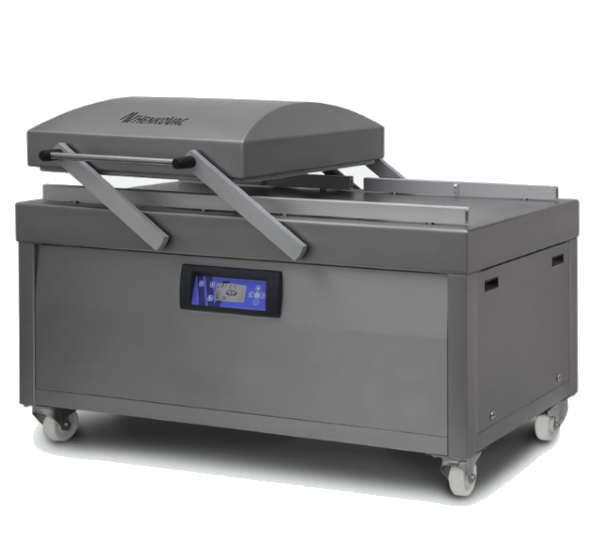

Double Chamber D3 |

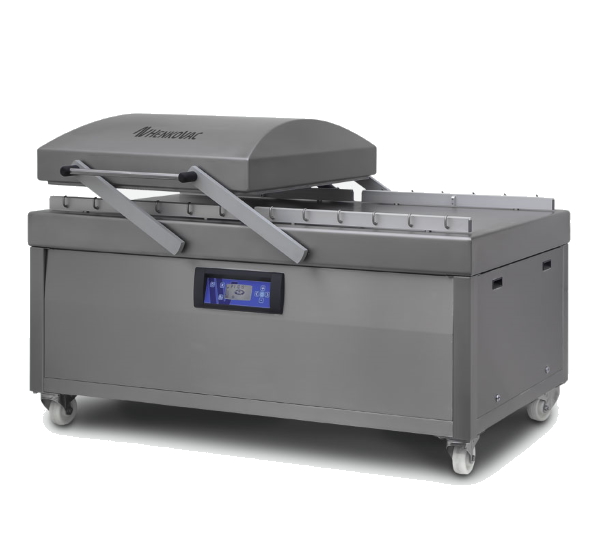

Double Chamber D4 |
| Chamber dimensions: 1440 x 900 x 1205 mm |
Chamber dimensions: 1865 x 1100 x 1170 mm |
Chamber dimensions: 2050 x 1265 x 1185 mm |
| Seal length: 620 mm |
Seal length: 705 mm and 820 mm |
Seal length: 805 mm and 920 mm |
| Vacuum pump: 63 m³/h |
Vacuum pump: 160 m³/h |
Vacuum pump: 160 m³/h |
| Weight: 425 kg |
Weight: 600 kg |
Weight: 720 kg |
| Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
ALUMINUM COVER / CHAMBER

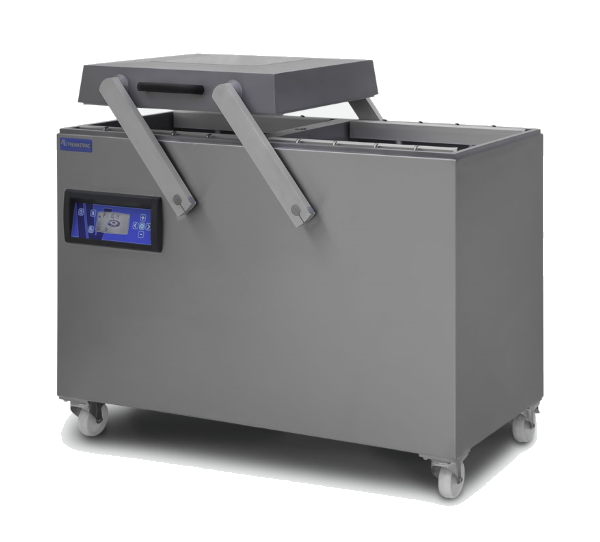

Double Chamber D6 |
||
| Chamber dimensions: 1345 x 720 x 1040 mm |
||
| Seal length: 590 mm |
||
| Vacuum pump: 40 m³/h |
||
| Weight: 280 kg |
||
| Power supply: 220V, 3Ph – 60Hz (Special voltages on request) |
